New Arrivel Car Battery Tester TOPDON Artibattery 101
ArtiBattery 101, adopting the advanced conductance testing technology, is to help mechanics find the problem easily, quickly and accurately; testing cranking, charging, and common fault for all automotive cranking lead acid battery including ordinary lead acid battery, gel battery, AGM flat plate and spiral battery.to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery.
Material: ABS plastic, silicone buttons
Screen: 128*64 LCD Display,
Size: 125.5 * 65.5 * 19 mm,
Weight: 210 g
1) Output voltage: 9-16VDC;
2) Working current: 40mA/12V;
3) Power: 0.5W;
4) Operating temperature: 0-50°C;
5) Storage temperature: -20-+70°C;
6) Working humidity:≤80%;
Identify battery status Good or Replace
Check Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Check Internal resistance value (m)
Display Life in percentage (%)
Battery Cranking Test, load test
Battery Charging Test, Ripple Test
Battery Health Test
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported
Charging Testing Standard and Testig Range:
CCA: Cold Cranking Amps (Range: 100~2000)
BCI: Battery Council International (100~2000)
CA: Cranking Amps (100~2000)
MCA: Marine Cranking Amps (100~2000)
JIS: Japan Industrial Standard (26A17~245H52)
DIN: German Auto Industry Committee (100~1400)
IEC: Internal Electrical Technical Commission (100~1400)
EN: European Automobile Industry Association (100~2000)
SAE: Society of Automotive Engineers (100~2000)
GB: China National Standard (30Ah~200Ah)
Professional 12V Car Battery Tester
At the middle bottom of the startup interface, it displays the Voltmeter value, which can be used as DC Voltmeter. DC Voltmeter test range is 8-16VDC. Out of which will damage the tester.
WHY DO YOU NEED IT
It’s a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, the Artibattery 101 is a perfect battery testing tool for your job and the family.
1: ABOUT THIS 12V TESTER: Topdon AB101 uses advanced conductance measurement technology, works on 12V passenger cars and light trucks, and accurately tests battery health status including voltage, cranking power, state of charge and more.
2:READABLE TEST RESULTS: This load battery tester displays 5 easy-to-understand battery test results; ‘Good Battery’/ ‘Good Battery, Need Recharge’/ ‘Replace, Life Cycle’/ ‘Replace, Bad Cell’/ ‘Charge, Retest’. You can know the complete status of any vehicle’s battery health status with one simple test.
3:BATTERY TROUBLE SHOOTING: The bad cell test tool supports cranking and charging test on almost all battery types of Ordinary Lead Acid, AGM Flat Plate, Spiral Plate, and Gel battery, to deeply diagnose car starting and charging system.
4:HIGH SAFETY & EASE OF USE: This battery analyzer utilizes polarity reverse-connection protection to avoid harming the car battery or tester, and provides you with the convenience of directly testing low batteries in vehicle or out of vehicle.
5:MULTI-LANGUAGE SUPPORT: The battery tester supports English, Russian, Spanish, French, Italian, German and battery system standards of CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB, for new or experienced users.

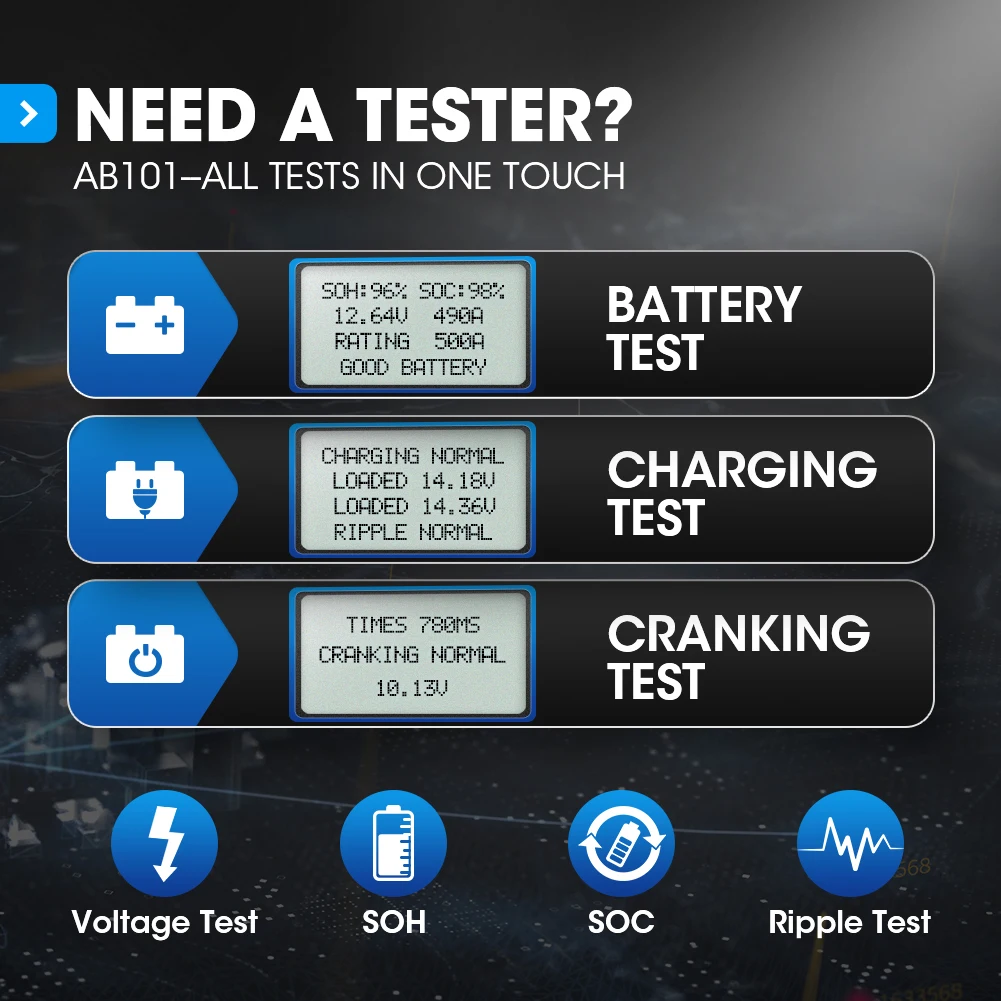

1 .Battery Test displays SOH (State of Health), SOC (State of Charge), Voltage, Current, Rating, and the readable analysis results on readable LCD screen for your reference;
Different Battery Test Result Displayed
NOTE: SOH means State of Health
SOC means State of Charge
Different Battery Test Result Displayed
1) Good Battery: The battery is in good condition, and you can rest assured of using it;like: SOH:96%,SOC:98%,12.64V,490A,Rating 500A
2) Good, Recharge: It’s a good battery with low current, and please recharge it before next using; like: SOH:78%,SOC:30%,12.2V,440A,Rating 500A
3) Replace: The battery is almost or already broken, and you should replace the battery, or there will be a bigger danger;like: SOH:46%,SOC:80%,12.68V,340A,Rating 500A
4) Bad Cell, Replace: The battery is broken or interiorly damaged or has short circuit, and it’s time to replace the battery;like: SOH:0%,SOC:20%,10.6V,0A,Rating 500A
5) Charge-Retest: Unstable battery shall be recharged and retested to avoid error. If the same test result appears again, the battery is regarded as damaged, replace the battery.like: SOH:39%,SOC:20%,12.08V,310A,Rating 500A
If “Replace” resulted from IN-VEHICLE mode, it might be the reason that vehicle cable is not well connected with the battery. Ensure to cut off the cable and retest the battery under OUT-OF-VEHICLE before making a decision to replace battery.
NOTE: After testing, if need to return, press RETURN key to directly return to the startup interface.

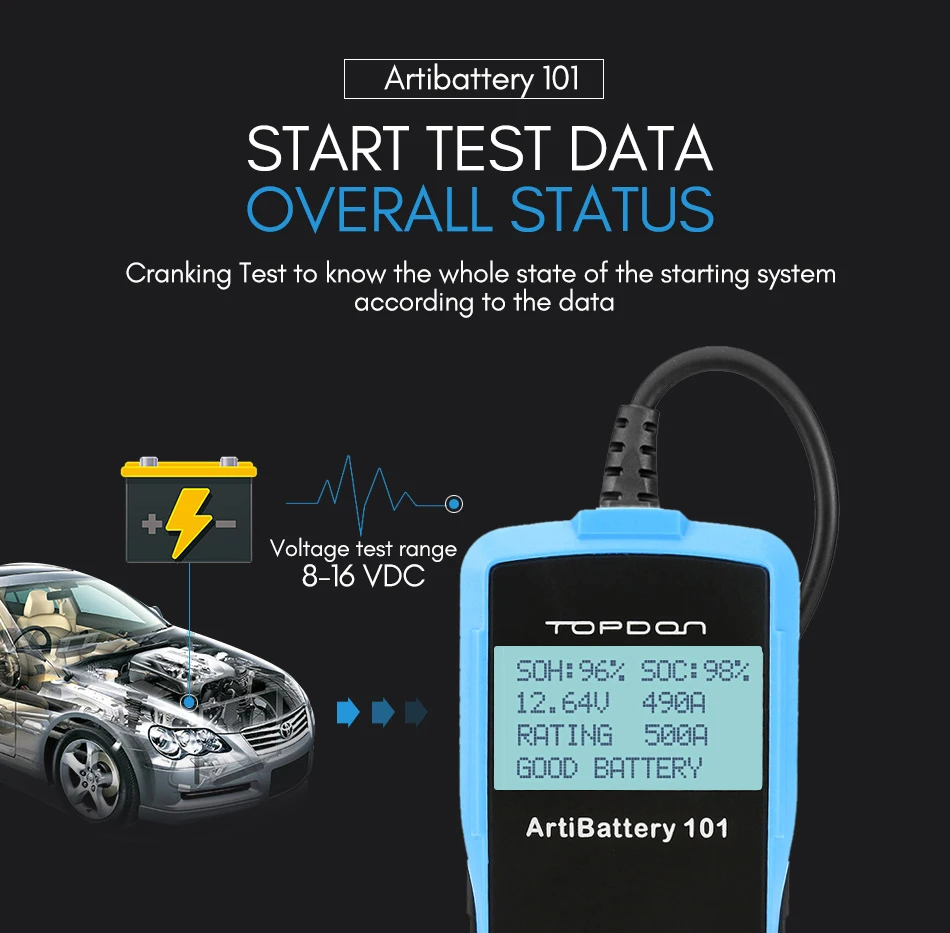

1). Entering cranking test and starting the engine as prompted, tester will automatically complete the test;
2). The tester will display the result including actual cranking voltage and actual cranking time;
3). If cranking voltage value is lower than 9.6V, the cranking system is regarded as abnormal;
4). If cranking voltage value is higher than 9.6V, the cranking system is OK.
5).When cranking test is abnormal, battery test result will also be displayed at the same time.
Charging System and Rectifier Diode Test
When enter the charging test, tester will prompt “Charging Test?Press OK key again to start the charging test.
NOTE: Do not shut down the engine during the test. All electrical appliance and device are in OFF state. Turn on/off any electrical appliance in the vehicle during the test will affect the accuracy of the test result
LOADED TESTING:Loaded Volt Test takes approx. 3 seconds, then it hints “Step on accelerator to increase engine rotating speed”
INCREASE REV:Operate accordingly to increase the engine rotating speed to 2500 turns or above, and keep for 5 seconds.
Tester starts the charging volt test after increase rev detected.
After the test finished, tester displays the effective charging volts, ripple test result and charging test result.
If no increase rev detected, it shall be the fault of generator regulator or connection with battery failed. Tester will try 3 times to further detect, if still failed, it will skip the increase rev detect and the test result displays “No Volt Output”. See below:NO VOLT OUTPUT.Check the connection between generator and battery, then retest.
Reliable data of Charging Test for your reference:
1). Charging Volt: Normal – the generator output is normal, no problem detected;
2). Charging Volt: Low – check the drive belt of the generator and the connection between generator and battery, or follow the manufacturer’s suggestion to eliminate generator fault;
3). Charging Volt: High – replace the generator assembly or a regulator to avoid battery damages;
4). No Volt Output – check the generator connection cable and the belt;
5). Diode Test – there is at least one diode is damaged if ripple volt is too high.
Tester has reverse connection protection function. When clamps are reversely connected, tester screen will not light, but it damages neither the tester nor the automotive load.
NOTE: For parallel connected batteries, break off the cathode connection first, then do single test to each battery. Suppose cathode connection is not cut off, there will be error in test result.

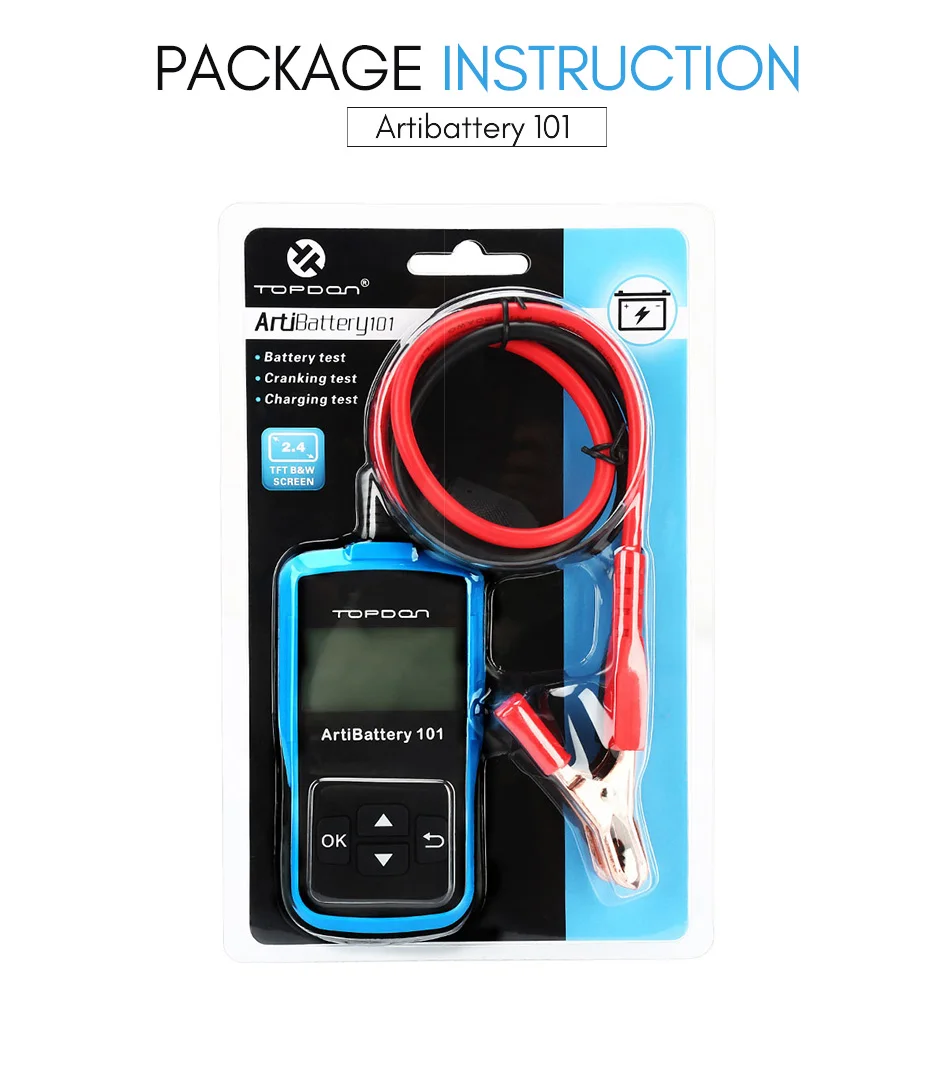

1* main unit
1* User Manual
one yeay warranty
|Shipping Company||Shipping Cost||Estimated Delivery Time|
|3 - 7 days|
|3 - 7 days|
|5 - 14 days|
|Post Air Mail||Free Shipping||15 - 45 days|
|Return Policy||If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
|Seller Service||On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).|
