Vgate iCar2 ELM327 obd2 Bluetooth scanner elm 327 V2.1 obd 2 wifi icar 2 auto diagnostic scanner for android/PC/IOS code reader

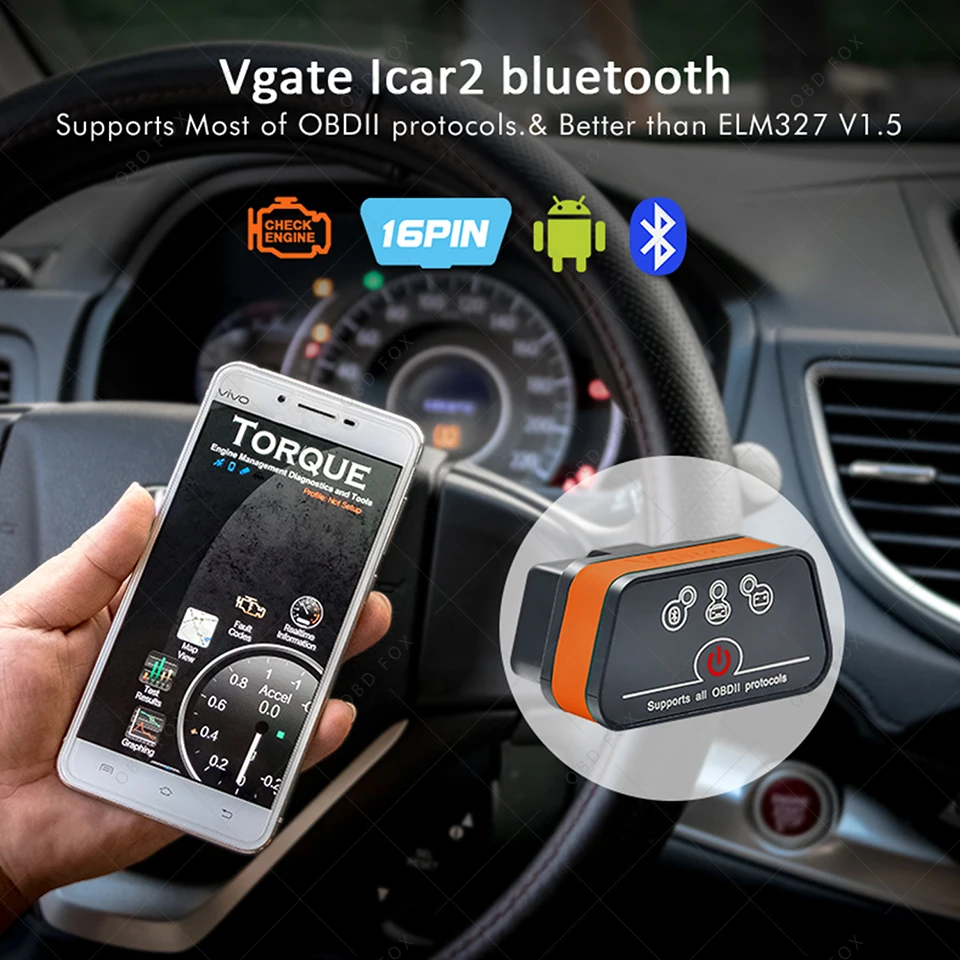

Vgate iCar2 OBD2 Scanner for Android/PC/IOS

Note :

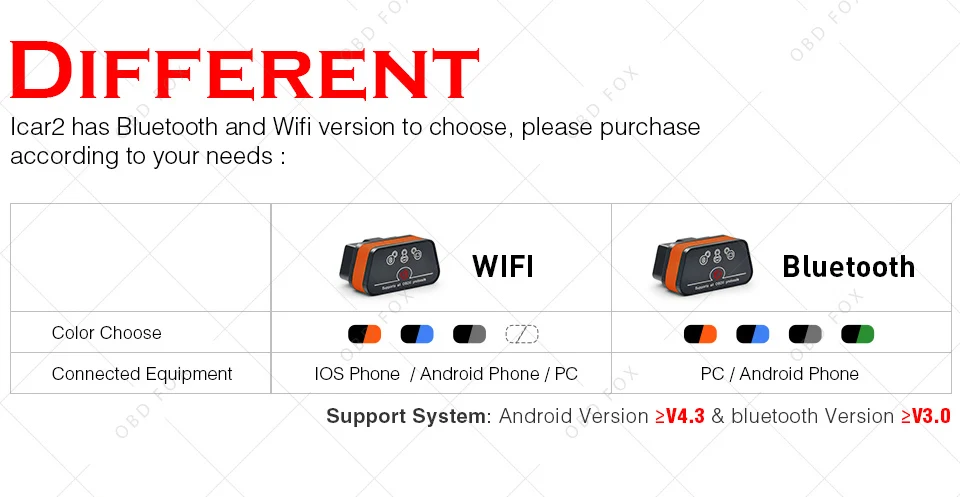

This Link is including 2 Version, one is icar2 wifi,the other one is icar2 bluetooth

–Bluetooth Version ：Support Android/PC. Not for IOS system

–WIFI Version：Support IOS/PC/Android

To the bluetooth / WIFI led and Car led in Icar2, they only light after you connect bluetooth / WIFI and car . There is only the power led light if you only plug it in the car .

Top reasons to buy Vgate iCar2:

1. 100% original, and firmware version is V2.1 support all standard OBD2 protocols.

2. Wifi version Support IOS /Anroid/Windows system.

3. Can do most of OBDII gasoline and diesel 12V cars,but can't support all OBDII cars.

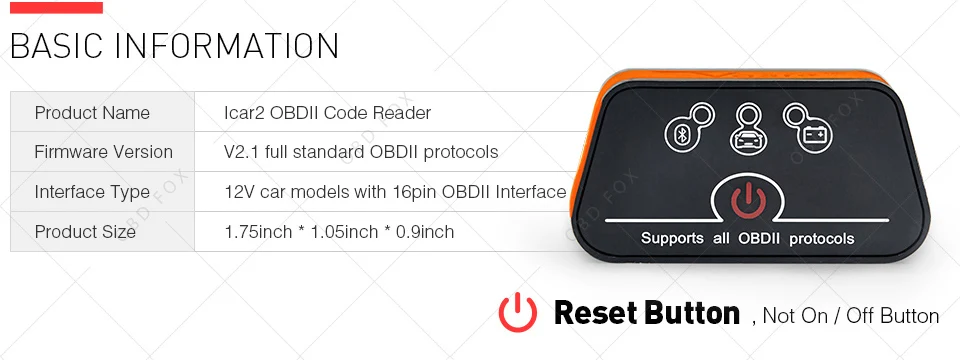

4. The power button is only used for reset the device , not have the function of turn on or turn off.

5. When stop communication, wait half an hour, auto sleep

6. Better than ELM327 V1.5, Small size, compact structure, more stable connection and durable

7. Provide multi-language optional.

8. The adapter uses the fastest and most reliable ARM chips

9. Bluetooth 5~10 meter, Wireless (wifi version) 10~20 meter

10.The iCar 2 bluetooth Only support android system up than 4.3 version , and bluetooth 3.0 or over version phone.

Vgate ICAR 2 is real V2.1 Version :

Vgate ICAR 2 Vehicle Coverage:

1. America Car List: (include Brazil)

Need standard obd2 , and release from 2001 years to now

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2. Europe Car List:

Need standard obd2 , and release from 2004 years to now

Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,Fit for Renault

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

3. Asia Car List: (include Australia)

Japanese car Need standard obd2 , and release from 2006 years to now

Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda

Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota

Chinese car Need standard obd2 , and release from 2011 years to now

Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry

4. Russia Car List:

For Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.

For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.

For Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.

For Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,

For Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.

For LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.

For LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.

If you are not sure whether it compatible with your car, please do not hesitate to contact us first,

Tell us your car model , release year, Vehicle Capacity, diesel or gasoline, 12v or 24v engine work voltage.

for example : for Audi A4, 2011 year, 2.0 TDI, Diesel, 12v.

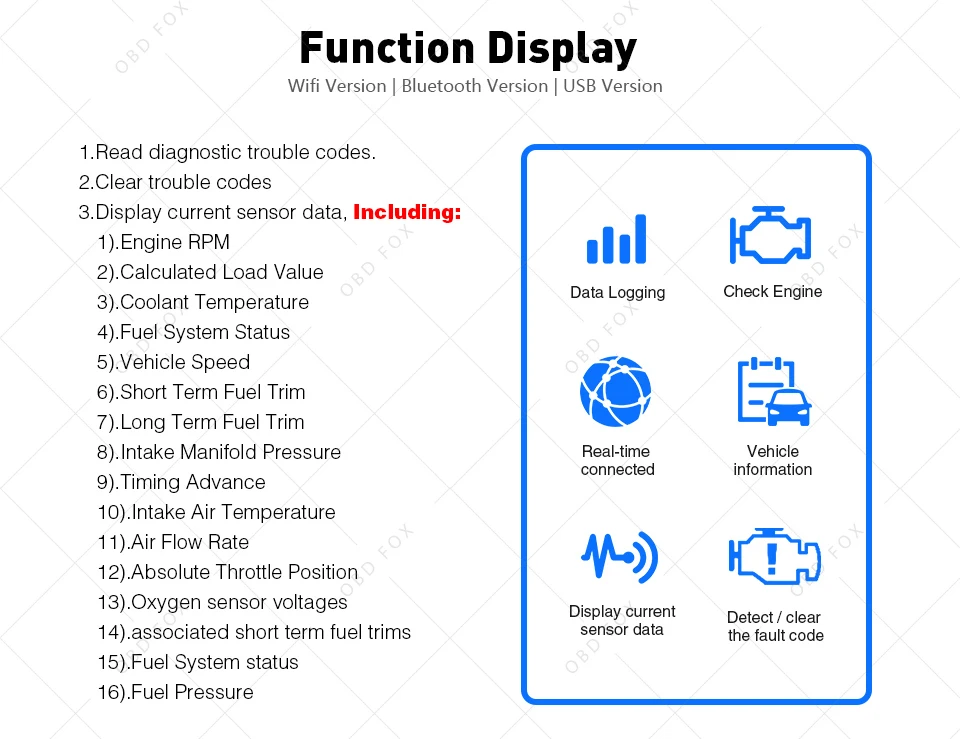

Vgate ICAR 2 Function :

The device is a small adapter that plugged into the vehicle OBD-connector.

On Wi-Fi, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:

* Read, erase and display code descriptions problems – both standard and spetskodov manufacturers.

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.

Vgate ICAR 2 Features:

* Small size, compact structure. Plug and never unplug

* Stable wireless connection

* No wires or batteries (adapter is powered by the diagnosis size sockets)

* Stop communication, wait half an hour, auto sleep

* Supports all OBDII protocols

* The adapter uses the fastest and most reliable ARM chips

With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

iCar 2 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

The type of Vgate Icar 2 can choose :

Wifi Vgate ICar 2 has 3 colors to choose

Bluetooth Vgate ICar 2 has 4 colors to choose

Package List:

1x iCar 2 wifi for iphone ipad pc

1x CD

1x Carrying box

Vgate ICAR2 Software shows :

How to connect the ELM327 Vgate iCar2 OBD2 Bluetooth Adapter:

1. Clear your bluetooth connection history, find the ELM327 device , and connect it, password is : 1234 ( If Wifi version , pls choose wifi connect )

2. Open the software , and set it as the picture steps ( If Wifi version , pls choose wifi connect ) :

3. Click these two places of the picture, and wait for 30 seconds , it will connect successful .

Software Download :

Q2 : Does it support my car Seat Ibiza 2014 1.4 gazoline 12V ?
A2 : To this , it supports if your car is with obd2 protocol via 16pin connector .

Q3 : I got the package now , but why it just connect bluetooth , wifi is not ok ?
A3 : To this , it is for your choose icar 2 bluetooth , not wifi , so it only connect via bluetooth . ( Bluetooth icar 2 works with bluetooth only , Wifi icar 2 works with wifi only )

Q4 : Your product is default , can not work , how to solve ?
A4 : Pls check you install the software well first , set the software well first , our link has the detailed for the software install and set , check first , then try again .

Q5 : the bluetooth led does not light , icar2 is defetive ?
A5 : It does not mean icar 2 is defetive , because to the bluetooth / WIFI led and Car led in Icar2, they only light after you connect bluetooth / WIFI and car . There is only the power led light if you only plug it in the car .
